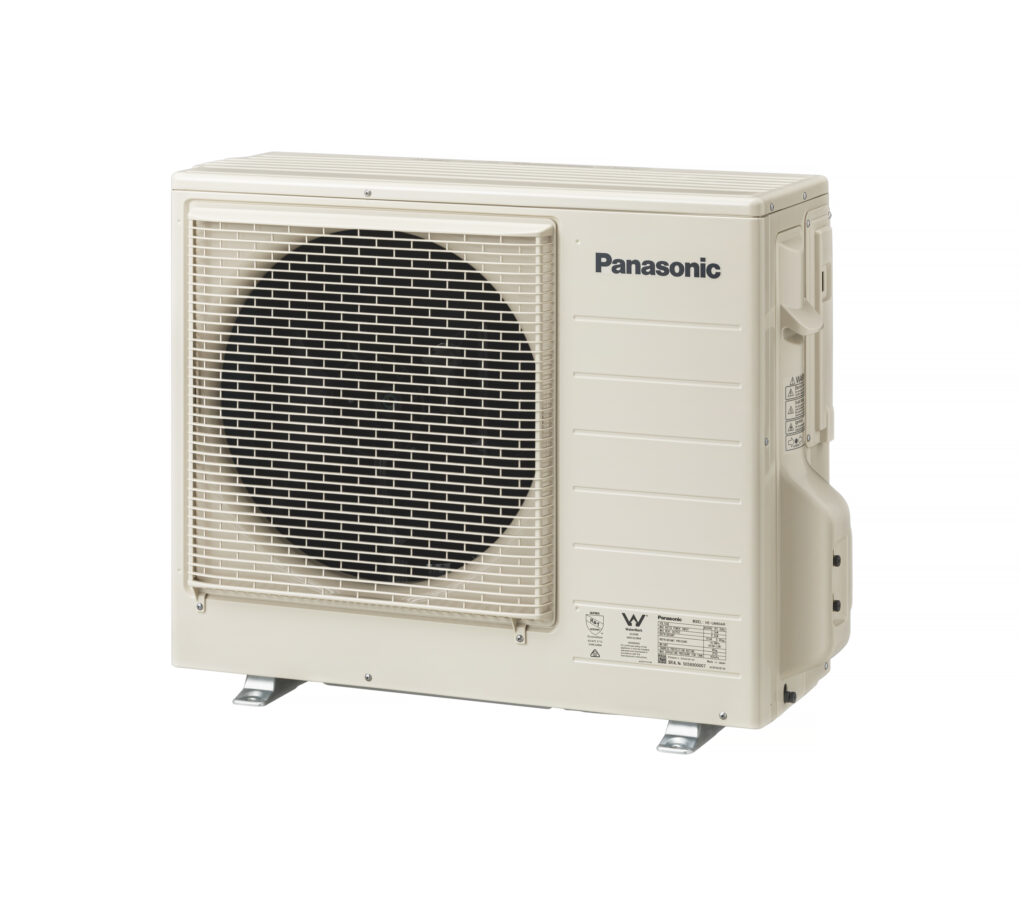

Panasonic CO2 Heat Pump
Hot Water System – CO2 Heat Pump

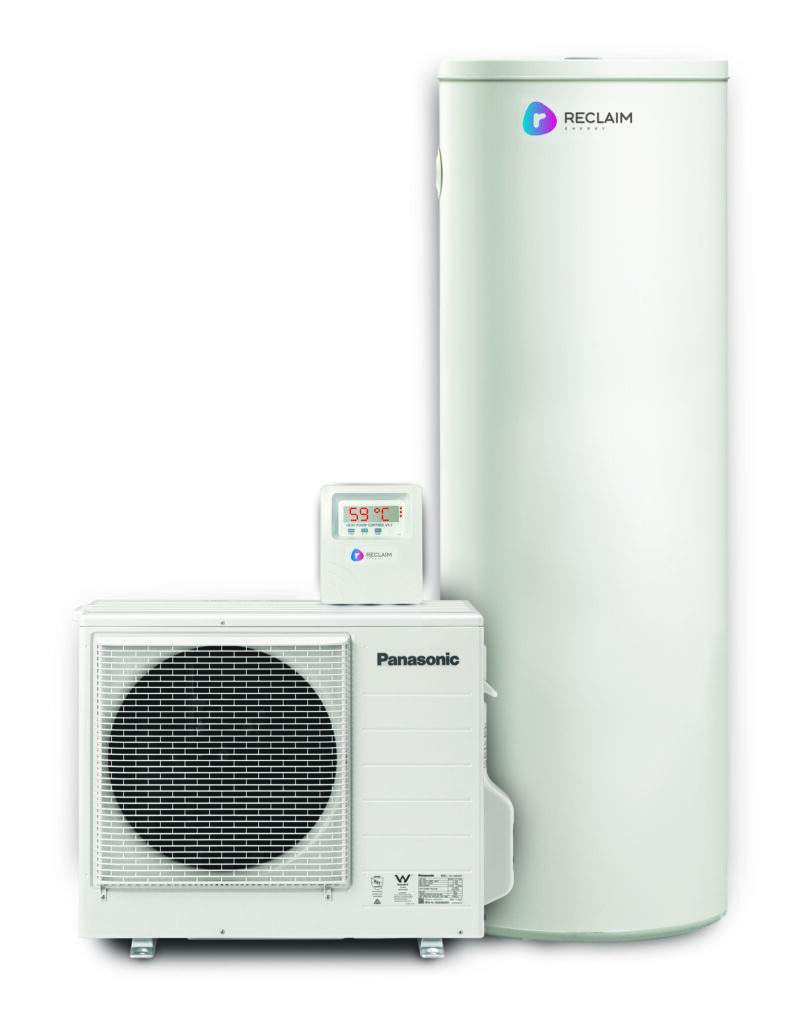

The Panasonic Hot Water system partnered with Reclaim Energy’s water tank utilises CO₂ heat pump technology to provide the most energy efficient form of heating for your domestic water.
The Panasonic Hot Water CO₂ heat pump technology utilises heat energy from the outside air of your home and transfers this heat to the water tank which stores your domestic hot water.
With an operating range of -10 °C to +44 °C, it is perfectly suited for all Australian conditions, even in colder climate areas. The Panasonic heat pump is also ultra quiet too. At a rated 37dB, equivalent to library ambience sound, you can be assured that you will not disturb the neighbours.
The Panasonic Hot Water Heat Pump is designed to save you energy and money and reduces greenhouse gas emissions. Achieve up to 80%* savings on your hot water bill. Environmentally friendly, industry leading technology with a global warming potential of 1 means upgrading your hot water heating will be kind to the planet as well as your wallet.
*depending on hot water usage
Our smart control delivers reliable energy savings!
The optional upgrade with the Wi‑Fi controller provides a highly adaptive and effective method to optimise your energy savings from anywhere.
Features
- Extremely efficient and environmentally friendly
- Quiet at only 37dB
- Flexible settings to maximise control and efficiency
- 6 operational modes
- Operating Range: -10 to + 44°C
- Various tank options available
Specs
Heat output at 32.5°C ambient / 21.0°C cold water inlet
5.06kW
Electric output at 32.5°C ambient / 21.0°C cold water inlet
0.83kW
COP at 32.5°C ambient / 21.0°C cold water inlet
6.09
Power input (Max)
2.3kW
Current input (Max)
10A
Circuit breaker size
15A
Standby power consumption
5.05W
Power supply
230V/Hz - 240V/Hz Vac (power input is voltage x amps x power factor) / 50Hz (single phase)
Heat pump refrigerant
CO₂ (R744)
Heat pump hot water delivery temperature
63°C - 67°C Variable (based on heat pump inlet temperature
Range of operating ambient temperature
-10°C to 43°C
Heat pump unit weight
46kg
Heat pump location
Outdoor
Noise level
37dB
Dimensions (H x W x D)
672mm x 799mm x 299mm
Rain resistance
IPX4
Water port connections (Inlet / Outlet)
1/2" BSP, 12.7mm
Built-in freeze and frost control
Variable. Depends on the relative humidity, water, & ambient temperature (i.e. about 5°C water temperature & 5°C ambient temperature).
The future of Reclaim Energy is here!
